Name: Lightweight Crank Balance Pump Jack for Oilfield Extraction API 11E
Brand: Puyang Zhongshi Group Co., Ltd.
SKU: Series 11E And CYJ
Price: 155.00 USD
Availability: InStock

उत्पाद का विवरण

Place of Origin: China,Henan

ब्रांड नाम: ZS

प्रमाणन: API

Model Number: Series 11E And CYJ

भुगतान और शिपिंग की शर्तें

Minimum Order Quantity: 1

मूल्य: negotiable

Packaging Details: 40f ccontainer

Delivery Time: 25 work days

Payment Terms: T/T

Supply Ability: 10sets/month

सर्वोत्तम मूल्य प्राप्त करें

उत्पाद का विवरण

उत्पाद का वर्णन

प्रमुखता देना:
                                                                                                                                                                                                                                                                                lightweight crank balance pump jack, API 11E oilfield pump jack, oilfield extraction pump parts


Weight:	Light	Warranty:	3 Year
Advantage:	High Performance	Standard:	API 11E and CYJ
Balance:	Crank Balance	Voltage:	380V-800V
Application:	Oilfield

Weight:	Light
Warranty:	3 Year
Advantage:	High Performance
Standard:	API 11E and CYJ
Balance:	Crank Balance
Voltage:	380V-800V
Application:	Oilfield

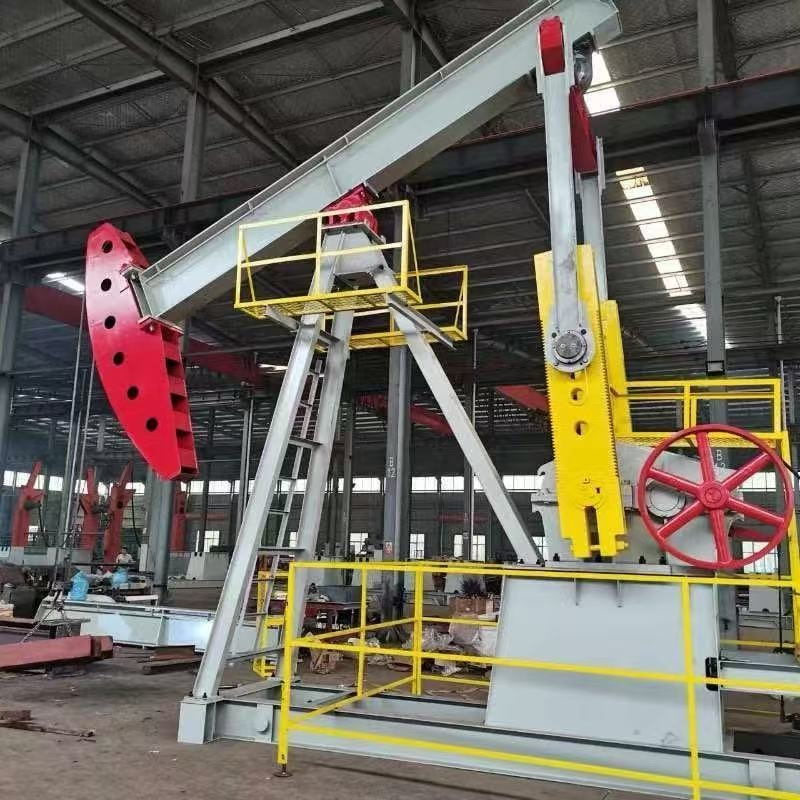

Lightweight Crank Balance Pump Jack for Oilfield Extraction API 11E

Balance Crank Balance Walking Beam Pump Jack For Oilfield Crude Oil Extraction

Product Specifications

Attribute	Value
Weight	Light
Warranty	3 Year
Advantage	High Performance
Standard	API 11E and CYJ
Balance	Crank Balance
Voltage	380V-800V
Application	Oilfield

API 11E C Series Pumping Units

The API B Series walking beam pump jack is a light-weight conventional beam pumping unit that uses walking beam balance, while the API C Series employs crank balance technology.

B Series Features

Simple structure for easy maintenance and long lifespan
Involute or biarc herring bone gear transmission for stable, reliable reducer operation
Lightweight design for easy installation and transportation
Ideal for shallow wells with short stroke lengths and light loads

C Series Features

Modular design with virtual manufacturing technology for optimized structure
High standardization, generalization, and serialization levels
FEM-analyzed key components for stable performance and reliability
Tight-seal reducers with low noise and smooth operation
Easy operation and maintenance with extended lifespan

B Series Technical Parameters

Model	Rated Polished Rod Load (lb)	Length of Stroke (in)	Rated Torque of the Reducer (in.lb)
B-80D-119-64	11,900	64, 54	80,000
B-80D-76-64	7,600	64, 54	80,000
B-80D-133-54	13,300	54, 41	80,000

CYJ Series Pumping Units

The CYJ series meets API Spec 11E and SY/T5044-2003 standards, certified with API monogram license. Includes traditional and energy-saving models like phase balanced and interference-reducing units.
